Deploy your suite of ocean sensors
Deploy your suite of ocean sensors
With ease, efficiency, and confidence
By building with Bellamare I am confident I get the best product possible.
Moritz S Schmidt, PhD
Research Project Leader, Oregon Department of Fish and Wildlife
TWO SIDEKICK SERIES TO COVER MANY USE CASES.
SIDEKICK.
PERFORMANCE.
2,500m depth rating
6 user-specified Interface bulkhead connectors
up to 5 Serial Inputs + 1 x 10/100/1000 Ethernet
2 or 4 core Atom or Pentium
up to 2.5 Ghz .. 4 GB DRAM .. Intel GPU .. 2TB
optional Removable 4TB USB 3.0 SSD
thinned-out image of Win IoT Enterprise
13-36VDC supply .. 12 to 18 W
can provide 5V, 12V, 15V or 24V to instruments
4-relay board
Reverse Polarity Protection & Inrush Current Limiter
Status LED Light .. On/Off Switch .. Start Switch
Remote-in .. Comm Port...
21" x 6.0" OD .. 19Lbs in air .. 4.0Lbs in water
-
User Manual
-
Spec Sheet
-
3D Model
SIDEKICK.
ENDURANCE.
2,500m depth rating
3 user-specified Interface bulkhead connectors
up to 3 Serial Inputs + 1 x 100Mbits Ethernet
x86 Quad-Core
1.92 Ghz .. 4 GB RAM .. 500MHz GPU .. 64GB
Removable Micro SD card
thinned-out image of Win IoT Enterprise
13-36VDC supply .. 5 W typical
can provide 12V or 24V to instruments
2-relay board
Reverse Polarity Protection & Inrush Current Limiter
Status LED Light .. On/Off Switch .. Start Switch .. Remote-in .. Comm Port
18" x 5.0" OD .. 12Lbs in air .. Neutral in water
-
User Manual
-
Spec Sheet
-
3D Model
The ability to integrate features and instruments seamlessly has improved our data collection and processing workflows immensely.
Elena Conser
Graduate Student, Hatfield Marine Science Center
DEPLOYMENTS SHOULD BE EASY. SUPER EASY.
SIDEKICK gets you in the field, FAST.

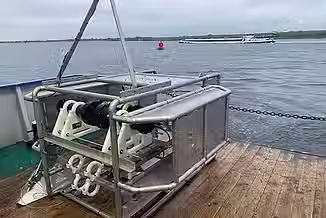

For a profiling cage

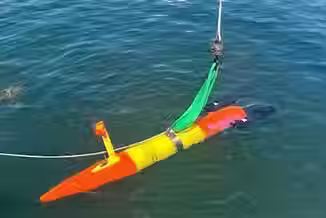

Payload management on a AUV
Payload management on a ROV
For a diver tow-board
For a surveys from a kayak
For a towed sled with limited telemetry
.avif)
For mooring buoys
.avif)
For a fixed marine stations
For you!
Ultimately, it has streamlined our data collection process, allowing our team to focus on the science and not on troubleshooting.
Cedric Guigand
Senior Research Associate II, Rosenstiel School of Marine and Atmospheric Science
Log Everything
All data is logged with a common timestamp and flexible format
Get your first look moments after retrieval
INTEGRATE ANY SENSORS IN A DAY.
START AT 90% COMPLETION.
Create your own applications - even sophisticated
Coding skills not required
ACQUIRE
LOG
VISUALIZE
CONTROL
MONITOR
We went out on approximately 20 research cruises over the course of 3 years without any issue that me and my team of biological oceanographers could not resolve (i.e., people with no engineering background)
Adam Greer
Assistant Professor, Skidaway Institute of Oceanography
BUILT-IN ROBUSTNESS WITH SMART MONITORING.
.png)
UNIVERSAL DATA HANDLER FOR MARINE SCIENTISTS.
Your powerful, modular application is built from a suite of independent plugins,
each designed to perform specific tasks and work seamlessly together
Chances are, the plugin you need for your research already exists!
Hardware plugins
-
NCD ProXR Relay board
-
NCD Analog to Digital converter
-
Arduino
-
SPLixel LED controller
-
Ocean Controls KTA-290 Stepper Motor Controller
-
NI DAQmx AI (and other National instruments analog DAQs)
-
Irgason EC100 (gas analyzer)
-
Senix ToughSonic 30 (acoustic distance)
-
Omega LSHD-25 (Pressure sensor)
-
Ocean Sensor Systems Wave Staff (water level)
-
Scanivalve MS4264 (pressure scanner)
Instrument plugins
-
SBE49 FastCAT CTD
-
SBE HydroCAT-EP V2
-
PAR sensor
-
ECO PAR
-
HOCR Radiometer
-
Nitrate SUNA V2
-
Fluorometer ECO FL
-
Fluorometer Triplet
-
Fluorometer ECO V2
-
Bioluminescence UBAT
-
SBE18 pH
-
SBE27 pH/O.R.P
-
SBE43 Dissolved Oxygen
-
AC-S
-
RBRcoda³
-
RBRmaestro³
-
Model 803 Flowmeter
-
Oxygen Optodes
-
Aquadopp Profiler 1 MHz
-
850 Precision Altimeter
-
ISIIS-DPI Shadowgraph
-
Niskin Bottle Actuator
-
GigE Cam
Application plugins
-
Relay Manager
-
Multiple Charts (example: depth profiles)
-
Time plots
-
Data table
-
Automated Flight Control
-
Basler Video Camera Recorder
-
State Machine (for smart controls)
-
Time Scheduler
-
TCP/IP Connection
-
Sneak Peek Data Aggregator (to see a snapshot of the data from your recent profiles)
INTEGRATE WITH EXISITING SYSTEMS AS A HYBRID TELEMETRY SOLUTION.
High-Speed Data Transmission & Local Logging
Send up to 10 Mbps of data over 300 meters of cable while still securely logging everything onboard the SIDEKICK.
Leverage Spare Channels for Critical Data
Use the spare serial port on the 911plus to relay key status updates or selected instrument data back to the ship.
Charles and Jassem provide excellent support for their products. For both hardware and software, I was able to meet and train with them, and felt very confident in operating our system. In addition to this, through the entire duration of my work with our system, they were always available and communicative if I reached out with questions about functionality and troubleshooting.
Hannah Kepner
PhD Student, Royal Netherlands Institute for Sea Research
